ZF Factory Tudor Black Bay Pro GMT M79470 Review: 39 mm Case and T-fit Buckle

ZF Factory Tudor Black Bay Pro GMT (Ref. M79470); It sits at the reference point of upper segment super clone production with its 39 mm stainless steel case, satin polishing passage on the front and rear, concealed tube winding crown pulled flush with the body, metal frameless solid Super-LumiNova indexes, yellow snowflake GMT handle and five-stage T-fit buckle.

The Black Bay Pro is one of the most difficult to replicate items in the Tudor catalogue; because the character of the model is hidden in the proportions, not the complications. The 14.6 mm thickness versus 39 mm diameter produces a case profile that looks rough on paper, but feels otherwise stable on the wrist. What establishes this balance is the curvature of the middle of the case, the descent curve of the lugs, and the thin shoulder left by the fixed 24-hour bezel; If one of the three measures is missed, the watch instantly becomes clunky.

In the version subject to this review, ZF Factory sought the challenge not in the visible surfaces but in the production steps: deep engraving on hardened steel, exact reproduction of the chamfer width between the case and the bezel, printing the date wheel in the original font as a separate component, and copying the quick-setting mechanics of the buckle down to the bore position. We measured the watch in nine heads, placing it side by side with the original and a standard market clone.

---

1. Dial Workmanship, Metal Frameless Lume Indices and 24-Hour Fixed Bezel

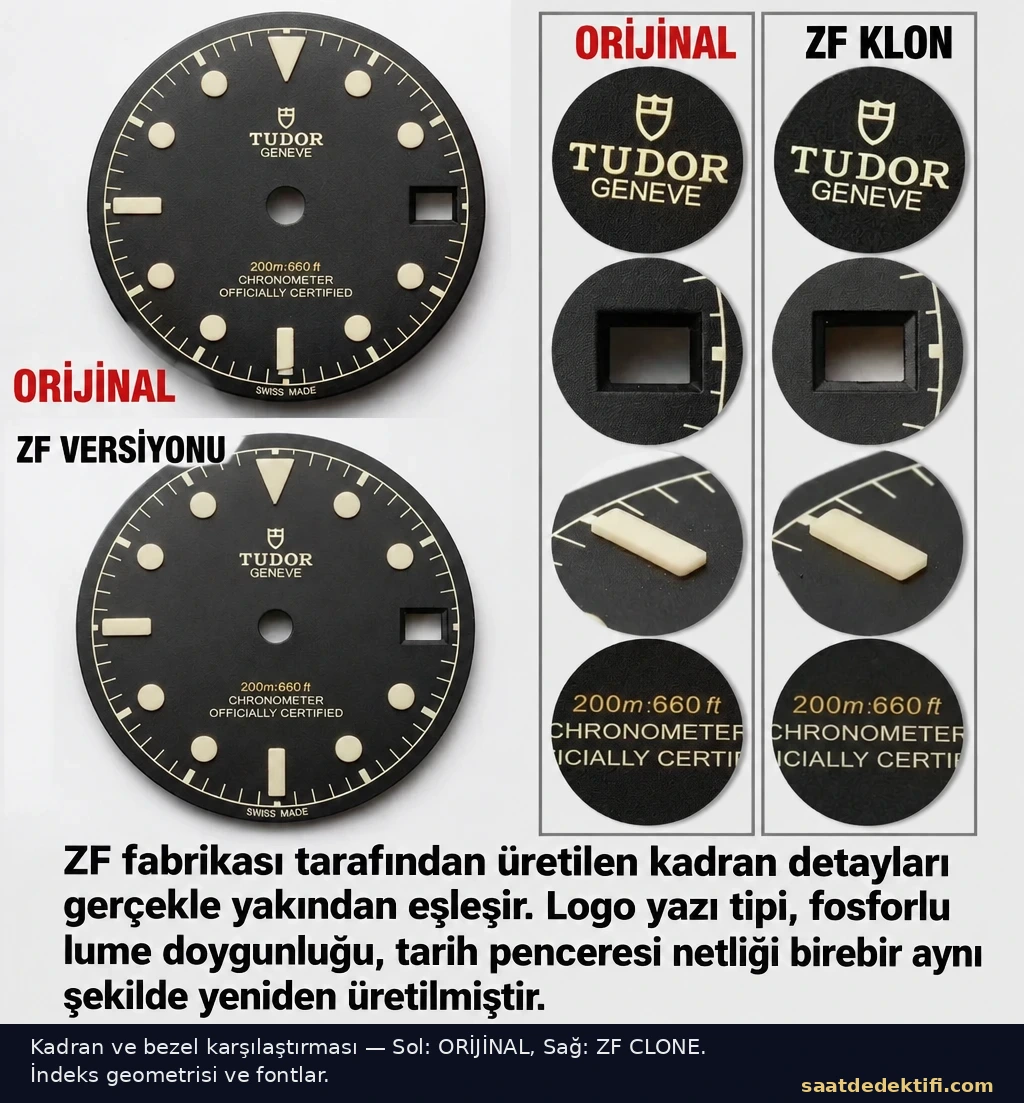

The most distinctive feature of the Tudor dial tongue is that the indexes are not placed in a metal frame; Non-radioactive Super-LumiNova is applied directly as a massive block. This expands the luminous area while visually simplifying the dial. In the comparison shot, it can be seen that the lume blocks of the ZF version match the original in terms of height, edge sharpness and corner roundness. The body thickness and letter spacing of the logo font also give the impression that it came from the same mold, and the cut edges of the date window do not distort under magnification.

• Sabit 24 saatlik bezel: ZF Factory tarafındaki en iddialı kalemdir. Bezel, Rolex Ref. 1655'in karakterini taşır ve buradaki kritik ölçü rakam aralıklarıdır. Ölçümde karakter boşlukları ve bezel yüzeyindeki fırçalama yönü orijinal referansla birebir çıkmış, yalnızca font detaylarında ölçüm seviyesinde kalan çok küçük bir sapma tespit edilmiştir. Piyasa klonlarında bu bezel genellikle parlak bir yüzeyle üretilir; fırçalama dokusunun yokluğu, saatin antika referans kimliğini tamamen bozar.

2. 39 mm Case Form, 14.6 mm Thickness and Caliper Measurement

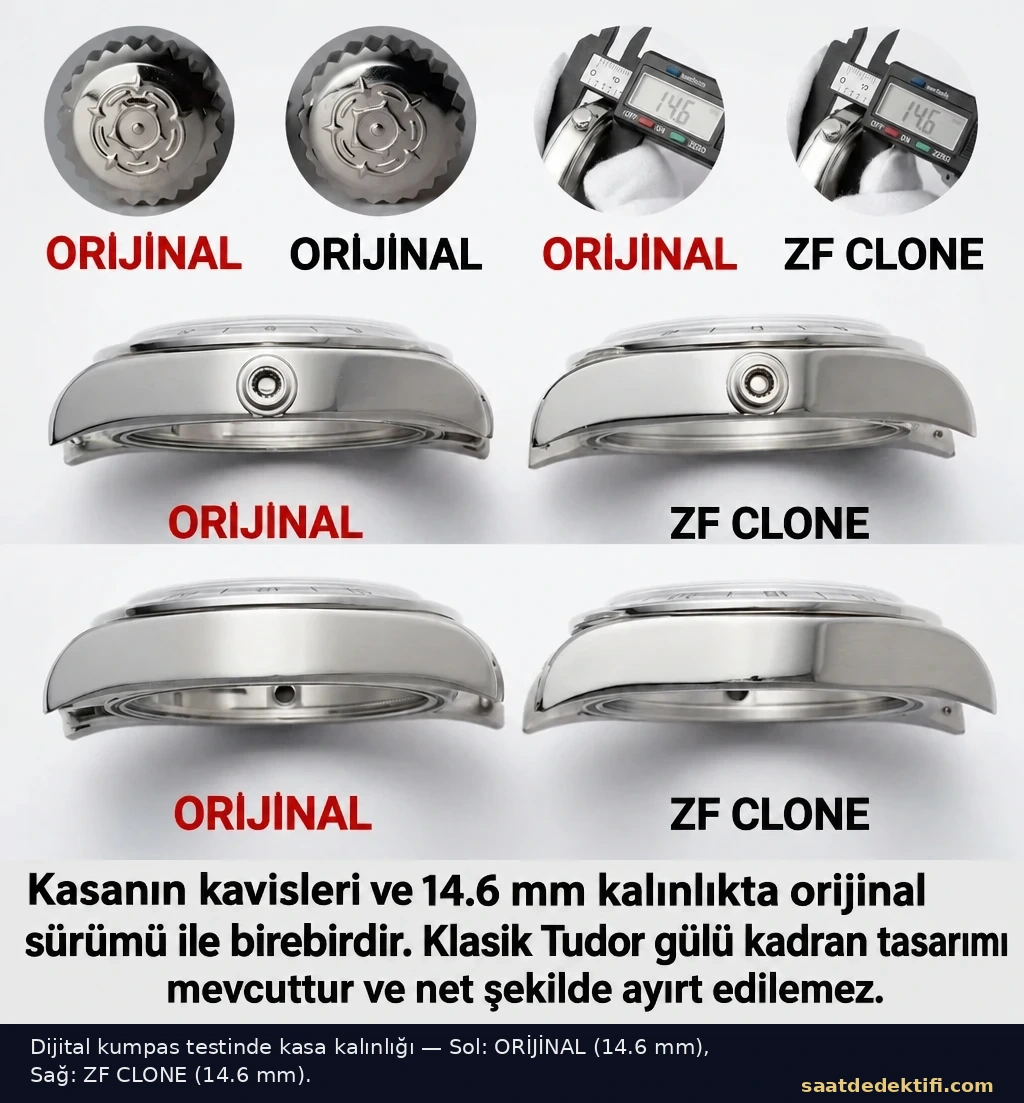

The stainless steel case is 39 mm in diameter and the digital caliper measurement read 14.6 mm in thickness on both watches. The case finish is installed with two different techniques: the upper surfaces are satin brushed, the side surfaces are polished. This dual texture is the same finishing logic in the Rolex tradition, and the sharpness of the transition line is the most easily read indicator of quality. In the ZF version, the boundary between two areas runs in a single straight line.

• Asıl fark profilde ortaya çıkar: Kasa kavisinin yarıçapı orijinalle çakıştığı için 14.6 mm'lik gövde bilekte olduğundan ince hissedilir. Piyasa işi replikalar aynı çapa sahip olsalar bile kavisi düzleştirerek üretim maliyetini düşürür; sonuç, silindirik ve tıknaz bir siluettir. ZF sürümünün omuz geçişi, kulak iniş açısı ve bezel ile kasa arasındaki ince omuz mesafesi ise orijinal referansla aynı çizgiyi takip etmekte, saatin karakteristik oranı korunmaktadır.

3. Back Cover Engraving Depth, In-Ear Model Code and Lean Case Analysis

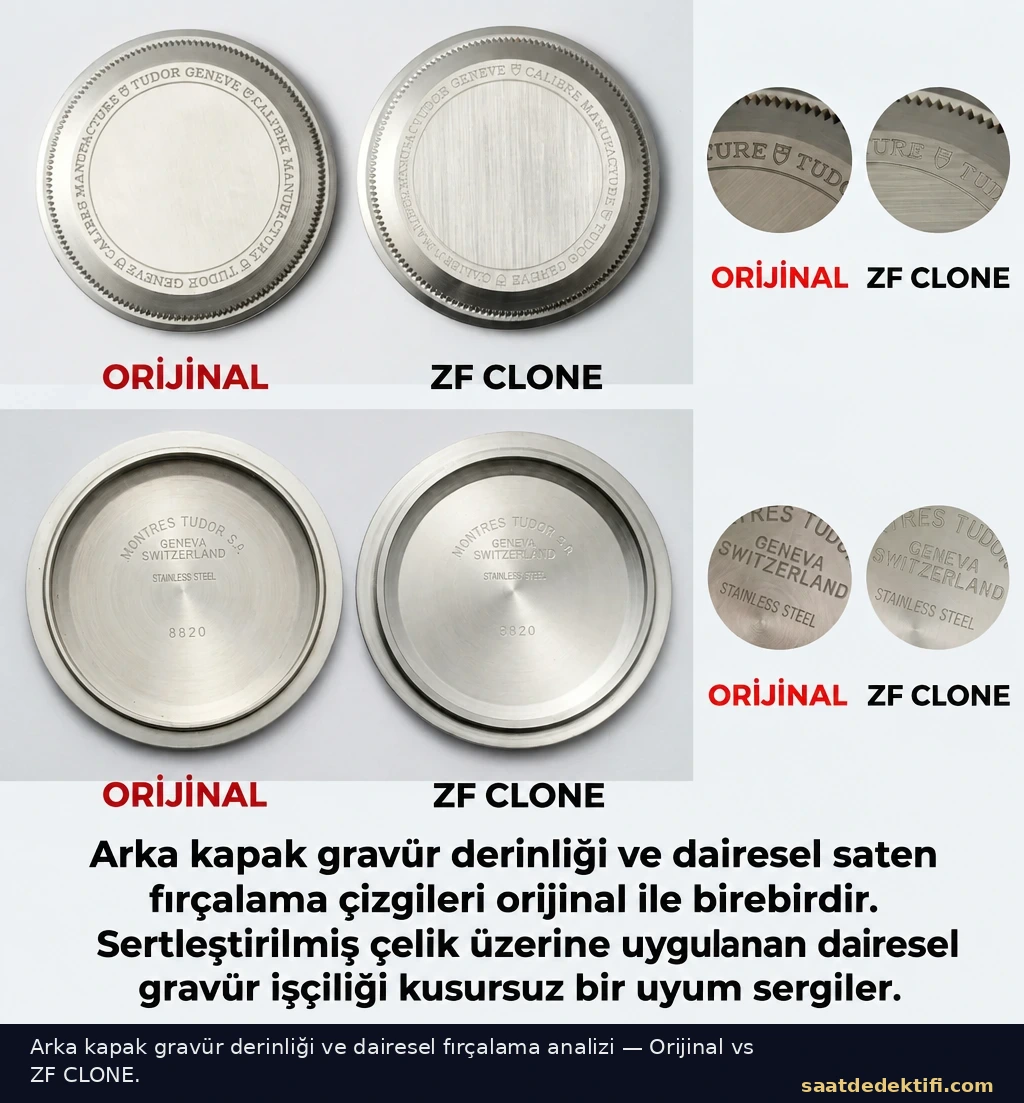

The chemical structure of high hardness steel is very stable; Deep engraving on this material requires a long, multi-step process chain. In the comparative shot, the engraving depth and letter-to-surface ratio of the ZF back cover were very close to the original, and the center alignment of the circular brushing rings did not shift. This is the main step that drives up the cost: market versions achieve the same image with a laser in a superficial manner, and the letters behave as smudges under light rather than embossed.

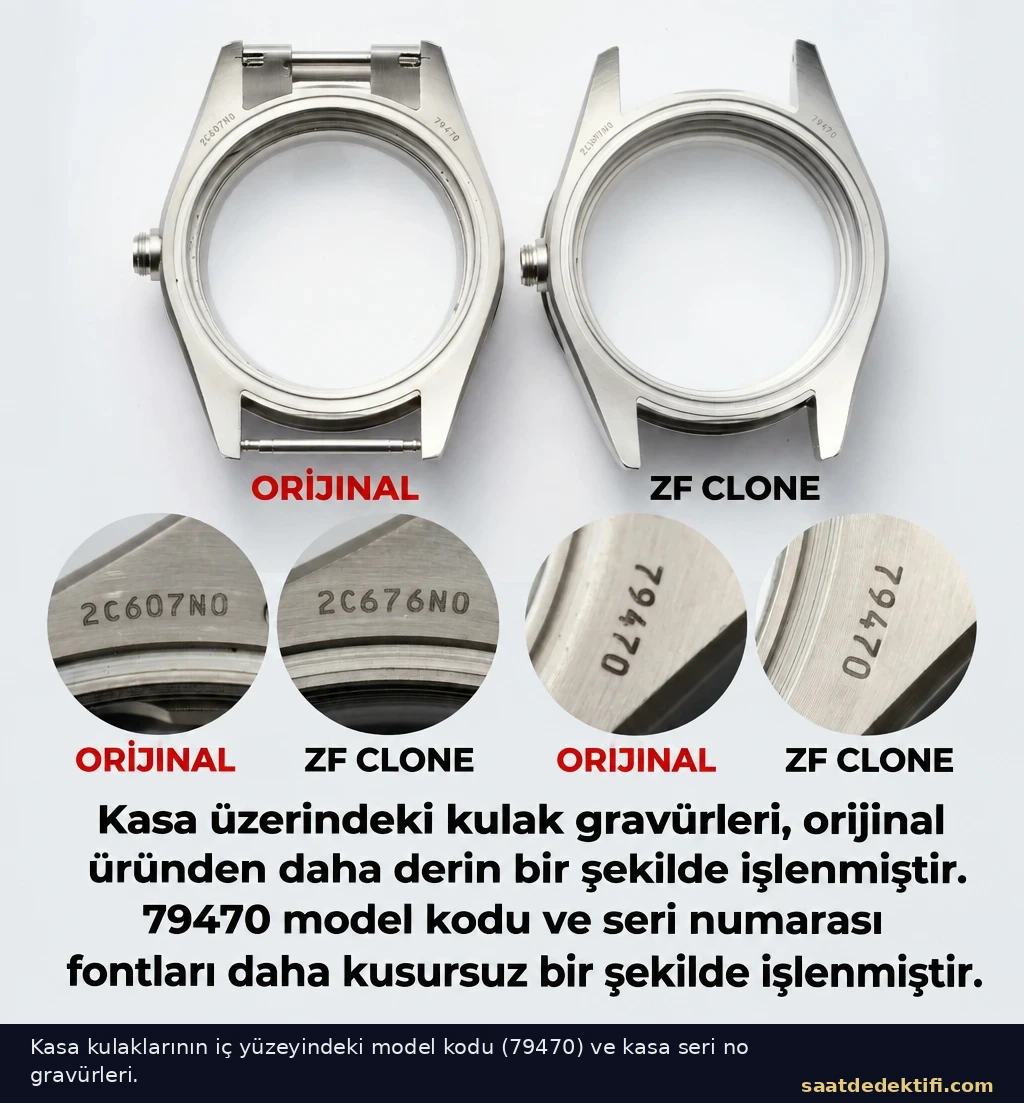

• Kasa kulaklarının iç yüzeyine işlenen 79470 model kodu ve kasa seri numarası, makro büyütmede bile orijinalden ayrıştırılamamıştır. Bu bölge ikinci el piyasada en sık kontrol edilen alanlardan biri olduğu için ZF Factory açısından kritik bir sınavdır. Mekanizma çıkarılıp kasa yalın haldeyken ölçüldüğünde halka gravürlerinin fontu senkron, metal fırçalaması orijinaldeki incelikte çıkmıştır. En çok atlanan ölçü olan pah kırma genişliği dahi sadakatle yeniden üretilmiştir.

4. Date Wheel Font, Number Geometry and Instant Date at 3 O'Clock

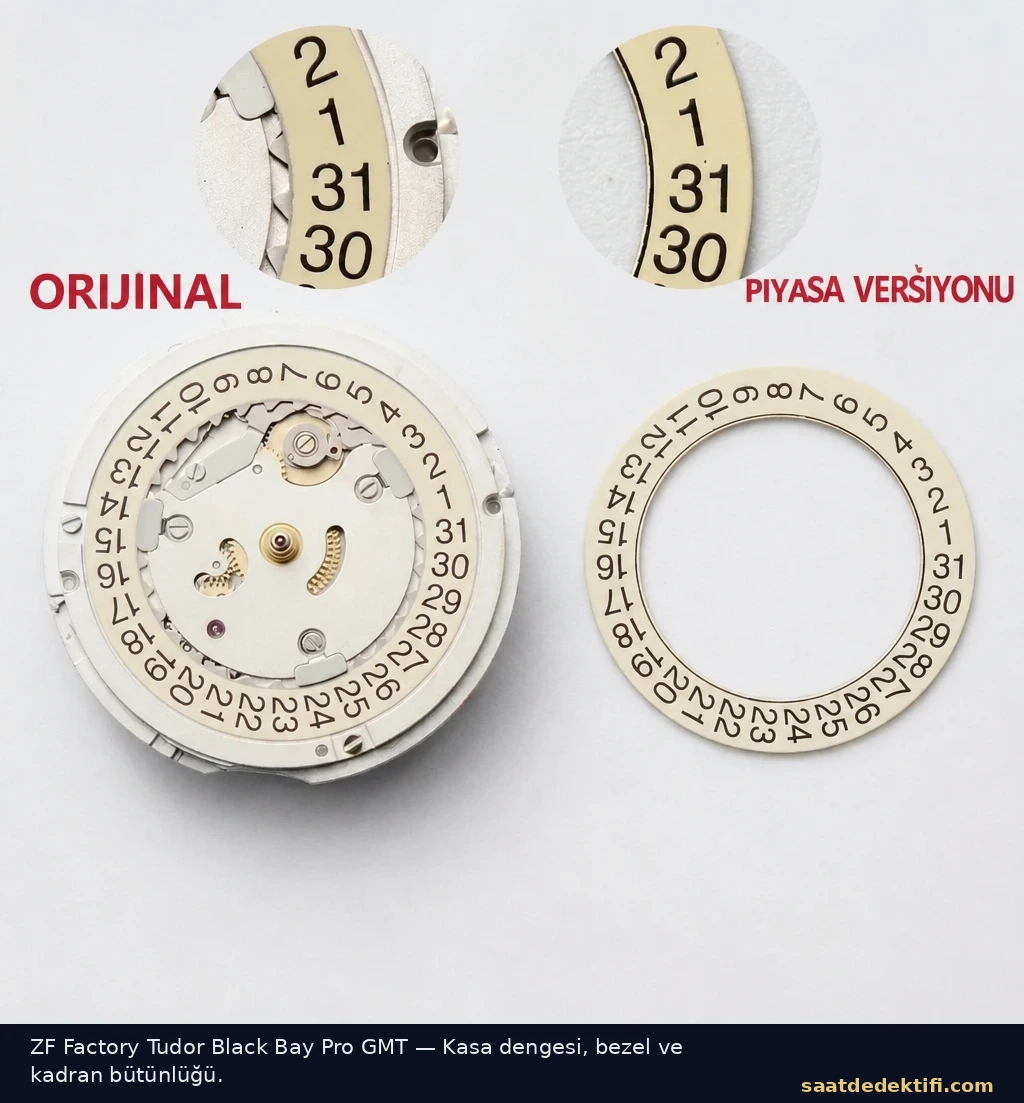

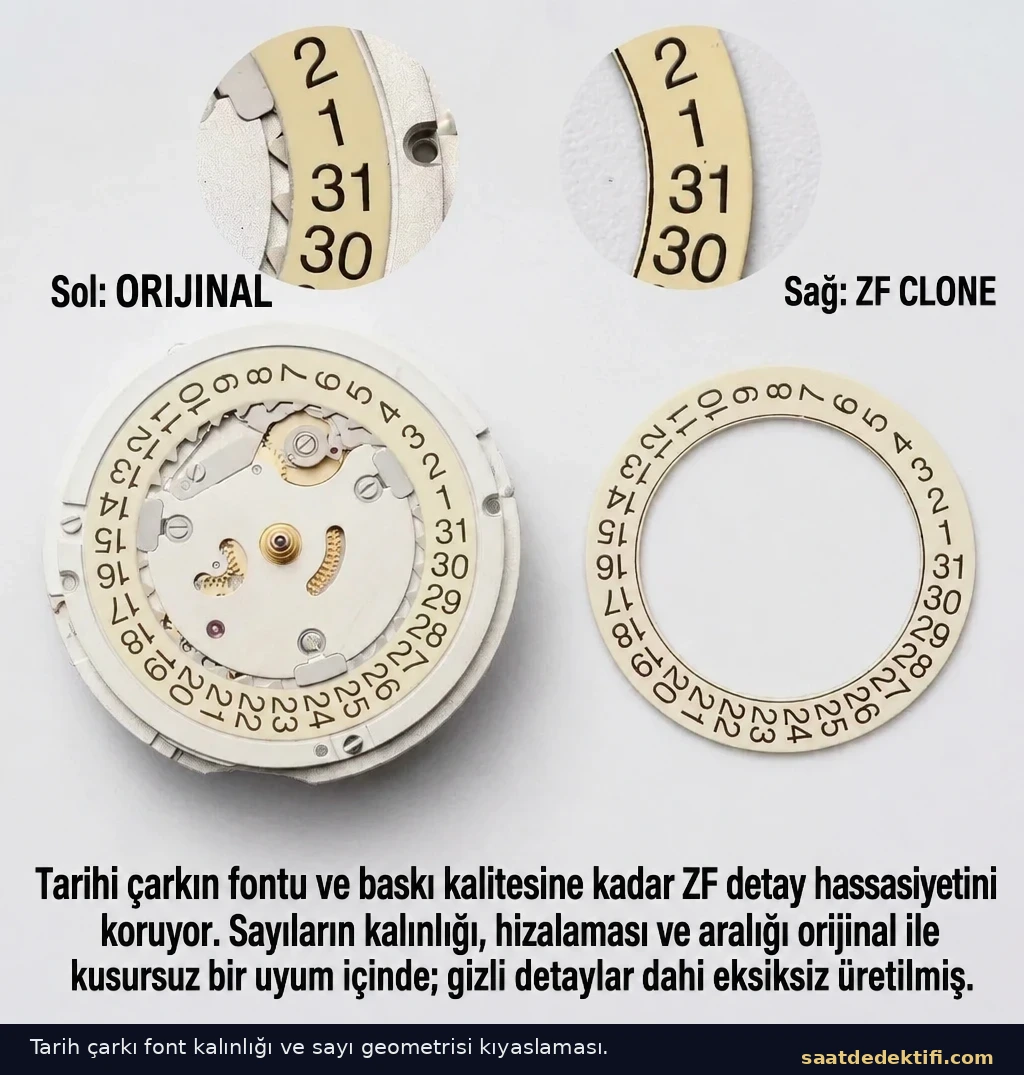

The date at 3 o'clock is instantaneous and synchronized with the independently adjustable hour hand; This means that the date advances correctly when changing the time zone and is the most practical feature in daily use. When we removed the date wheel as a separate component in the laboratory and compared it, we saw that the font body thickness, number height and number geometry were the same as the original. On market clones the wheel usually comes from a standard stock and the digits remain wavy or thin in the window.

5. Stainless Steel Bracelet, Link Structure and Safety Lock Clasp Links

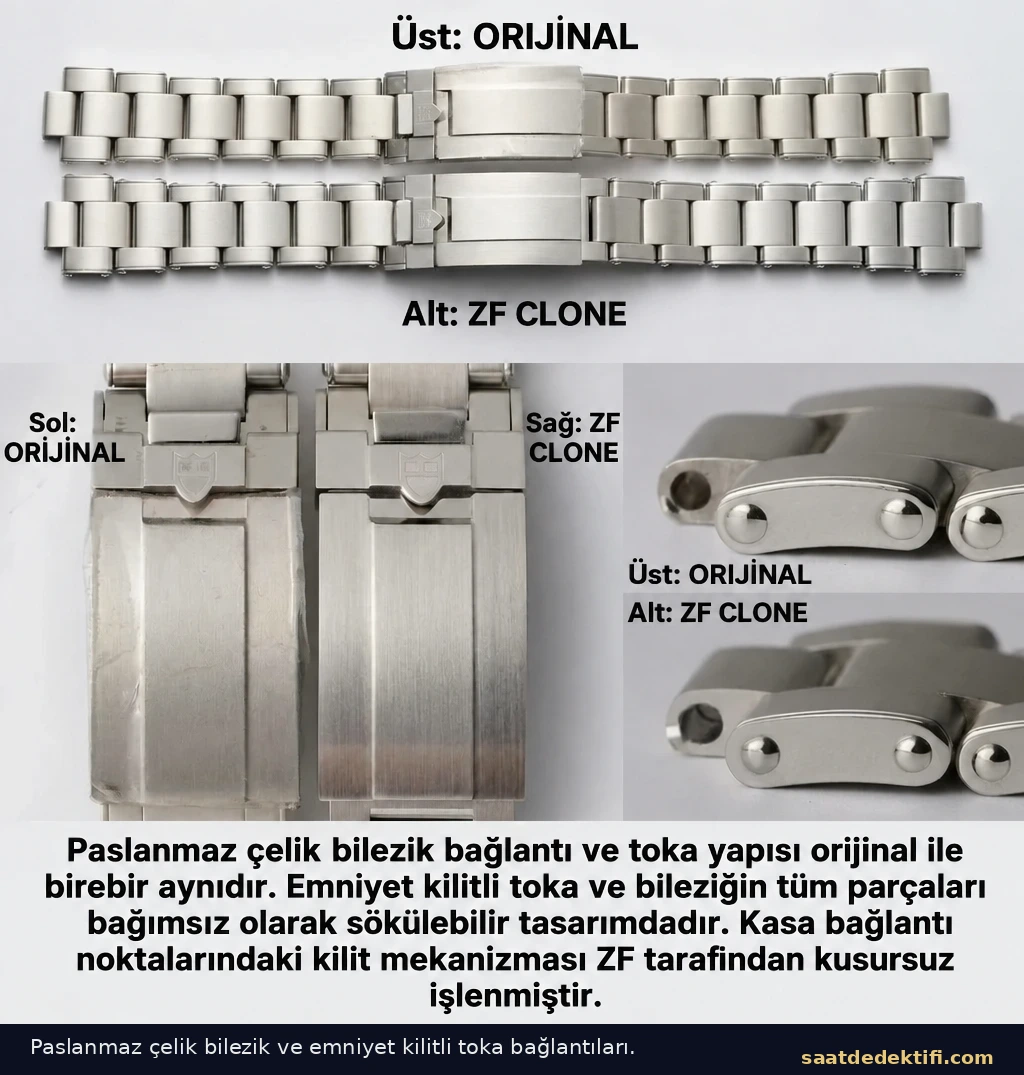

The bracelet thickness and link structure are synchronized with the original; Each component of the safety lock buckle is independently removable, just like the original. The ear-level safety lock has also been reproduced in the correct position. In ordinary replicas, this area is mostly cast in one piece, and the entire bracelet has to be changed when service is required. In the ZF version, the link pins and safety catch operate separately, giving a controlled release rather than looseness when the bracelet falls on the wrist.

6. Snowflake Hands, Yellow GMT Hand and Center Pin Tolerance

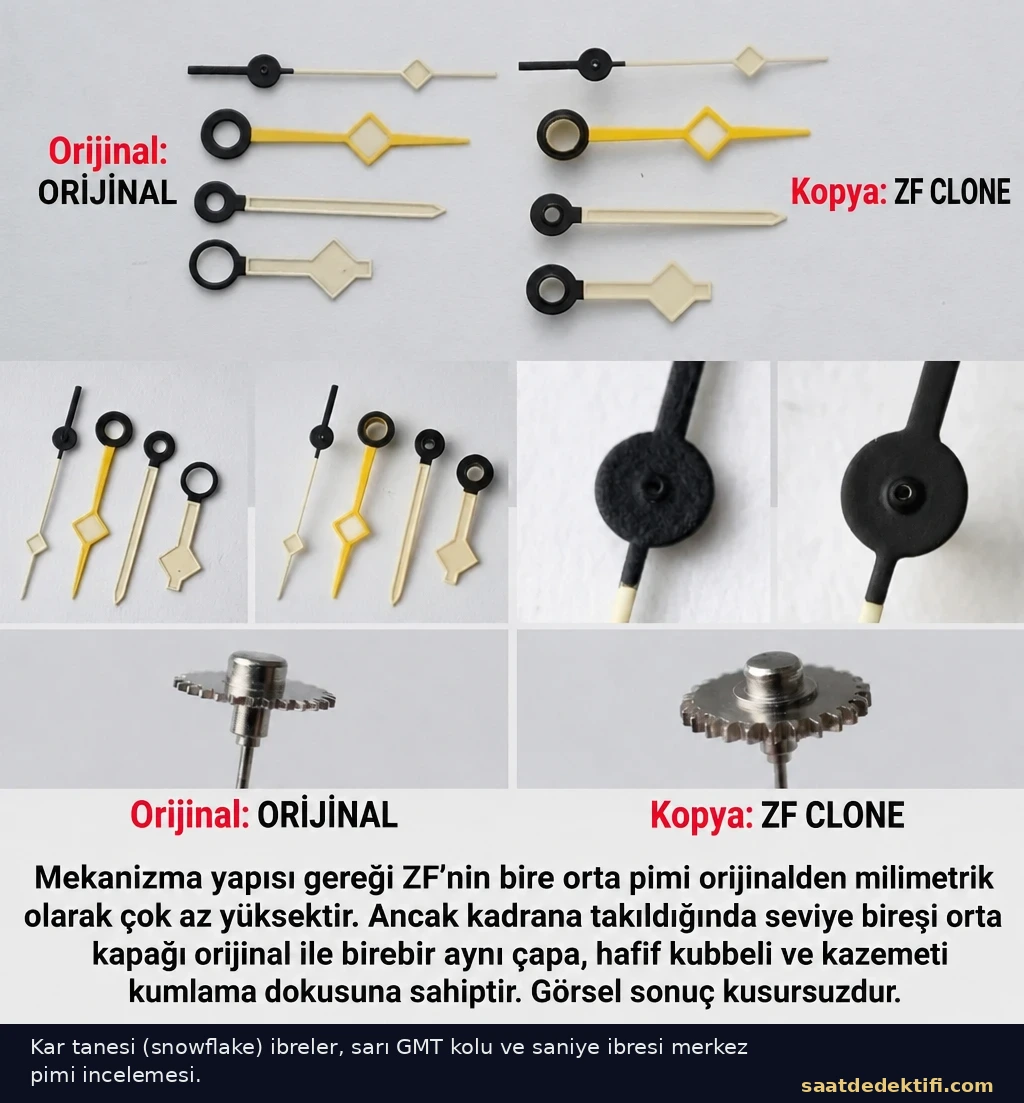

Besides the local time display, the second time zone is read on the extended yellow snowflake hand and fixed 24-hour bezel. The body width, lume fill area and tip angle of the snowflake hands follow the original geometry. The only real omission in this review is due to the difference in the structure of the movement: the center pin of the hands remains slightly higher than the original. This is the most obvious flaw we found in the watch as a whole and should be mentioned separately for the sake of honesty.

• Buna karşılık ibreler mekanizmaya takıldığında görünür tek fark saniye ibresinin merkez pimiyle sınırlı kalır. ZF, bu pimi orijinalle aynı çap ve kalınlıkta üretmiş, merkezdeki hafif yükseltiyi ve kumlama dokusunu da birebir taşımıştır. Montaj tamamlandığında kadran düzlemine bakıldığında göze çarpan bir yükseklik farkı kalmaz; sonuç, pratikte kusursuz denebilecek bir ibre seti ve temiz bir merkez görüntüsüdür. Sıradan replikalarda ise aynı pim hem kaba hem de belirgin yüksektir.

7. Tortoiseshell Buckle and 5-Level T-fit Quick Adjustment System

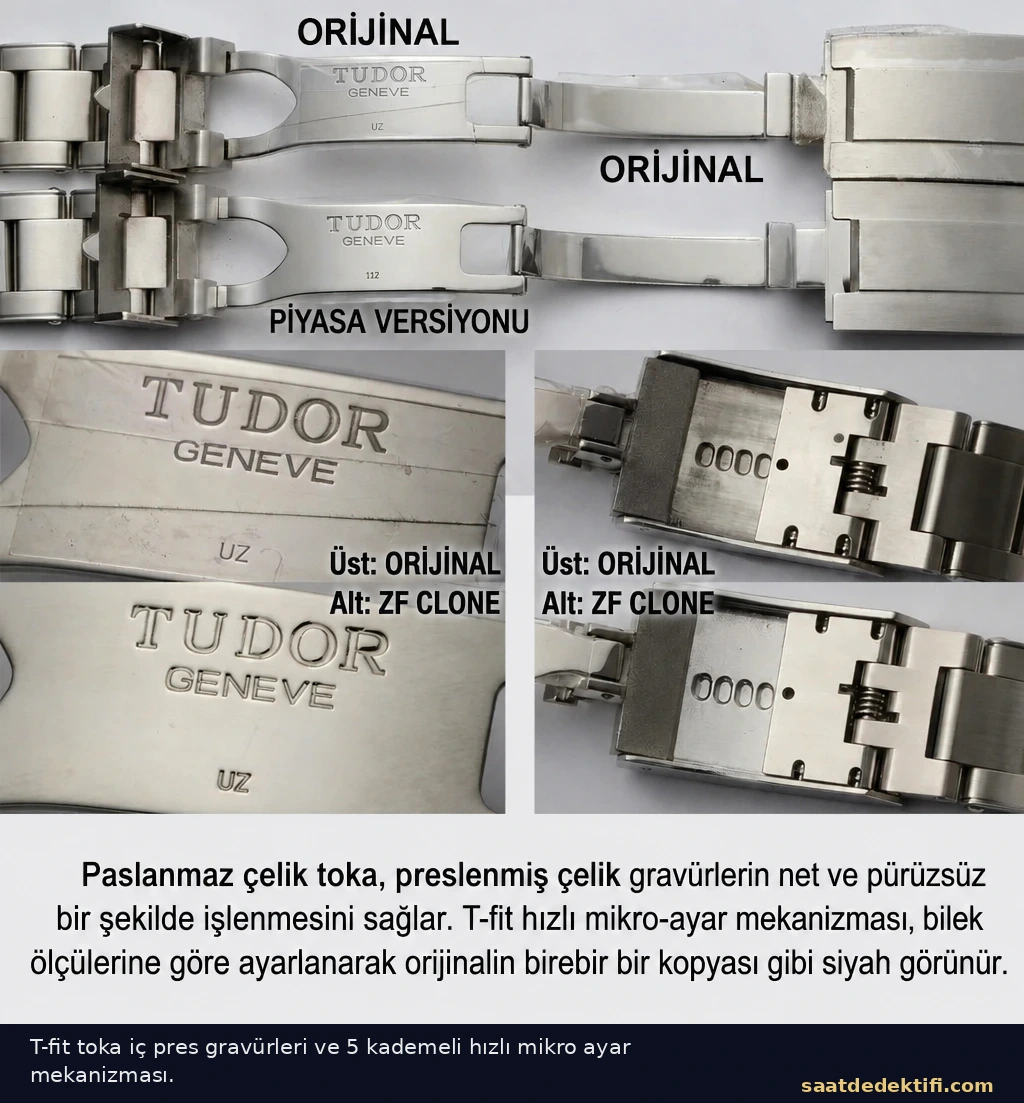

The most practical innovation of the model is the T-fit quick adjustment system integrated into the new tortoiseshell-shaped buckle: length adjustment of up to 8 millimeters can be made in five stages and comfort is maintained for different wrist sizes. ZF Factory has replicated these mechanics down to the hole positions, spring tension and tuning feel; The stages are locked with a clear click, and there is no getting stuck in the intermediate position. The engravings on the inner surface of the buckle were printed with the original press mold method, and the edges were finished clean and burr-free.

8. Studio Shots: Front Face, Dial Macro and Side Profile Integrity

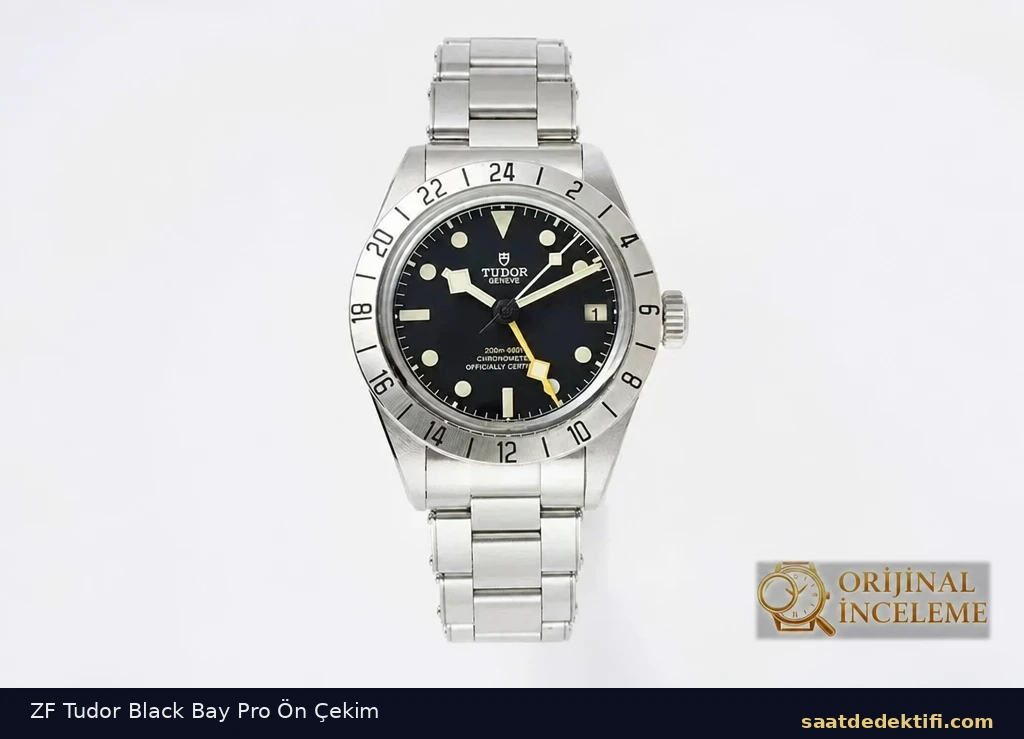

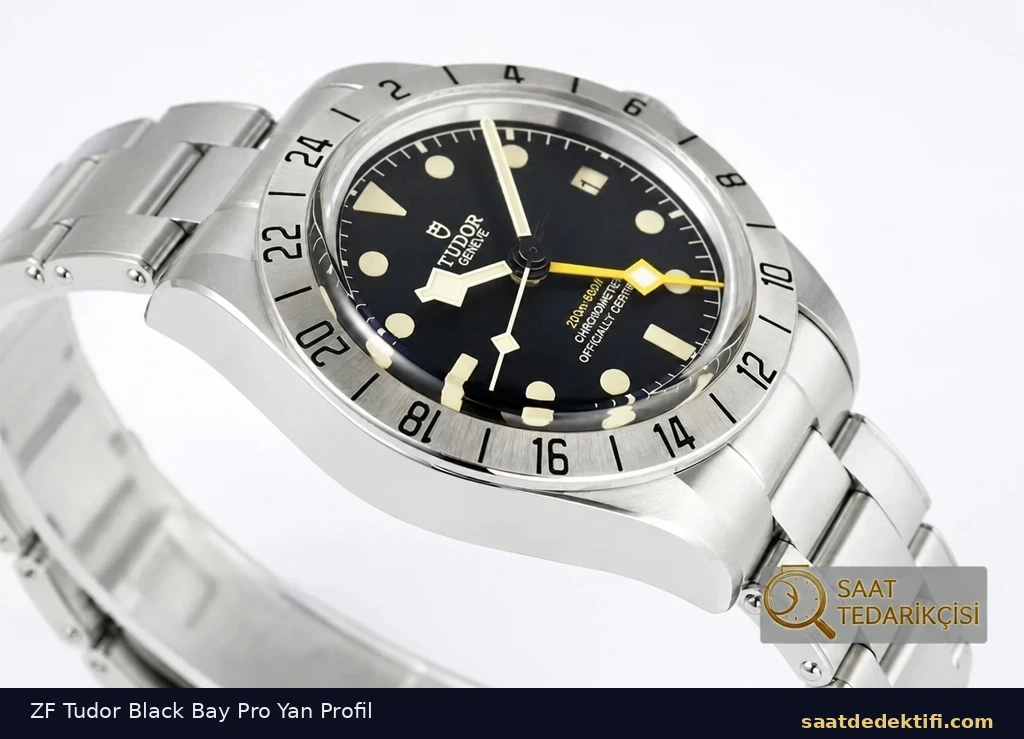

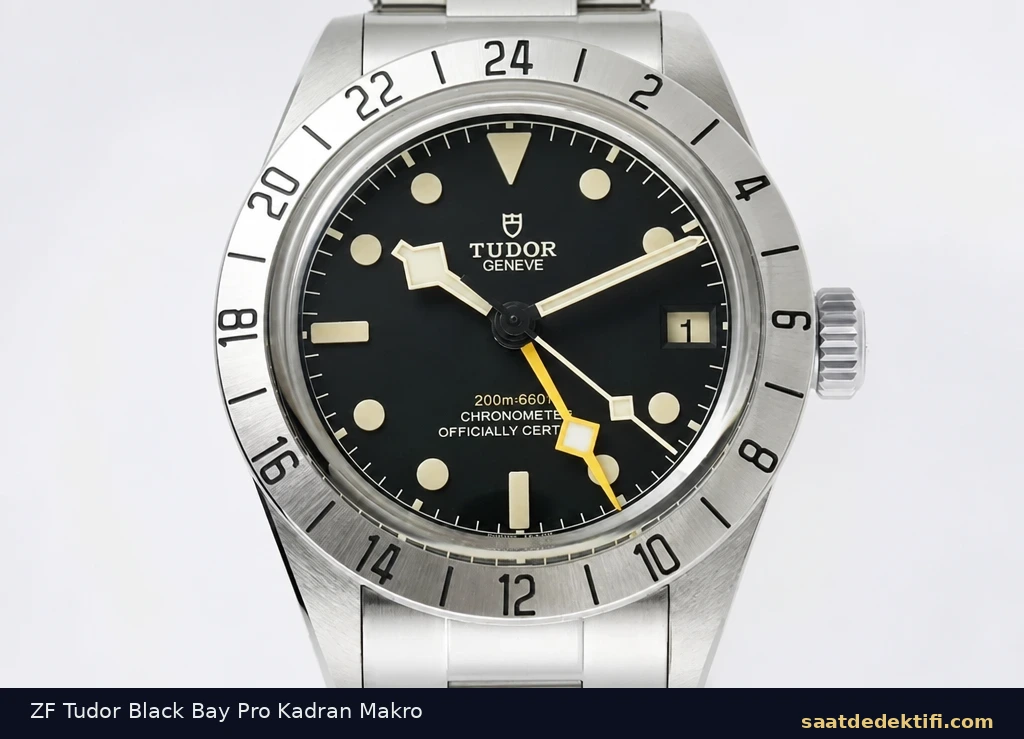

Measuring individual components is one thing, evaluating the watch as a whole in one light is another. During studio shots, the symmetry of the front face, the alignment of the dial indices with the minite scale, and the centering of the bezel numerals relative to the case edge were checked; No slip detected. In the dial macro, the edges of the lume blocks appear sharp and their surfaces appear homogeneous; On the side profile, the transition line of the satin and polishing areas runs in an uninterrupted line, visually preserving the 39 mm ratio of the case.

9. Hidden Tube Crown, Tudor Rose, Rear View and Bracelet Entire

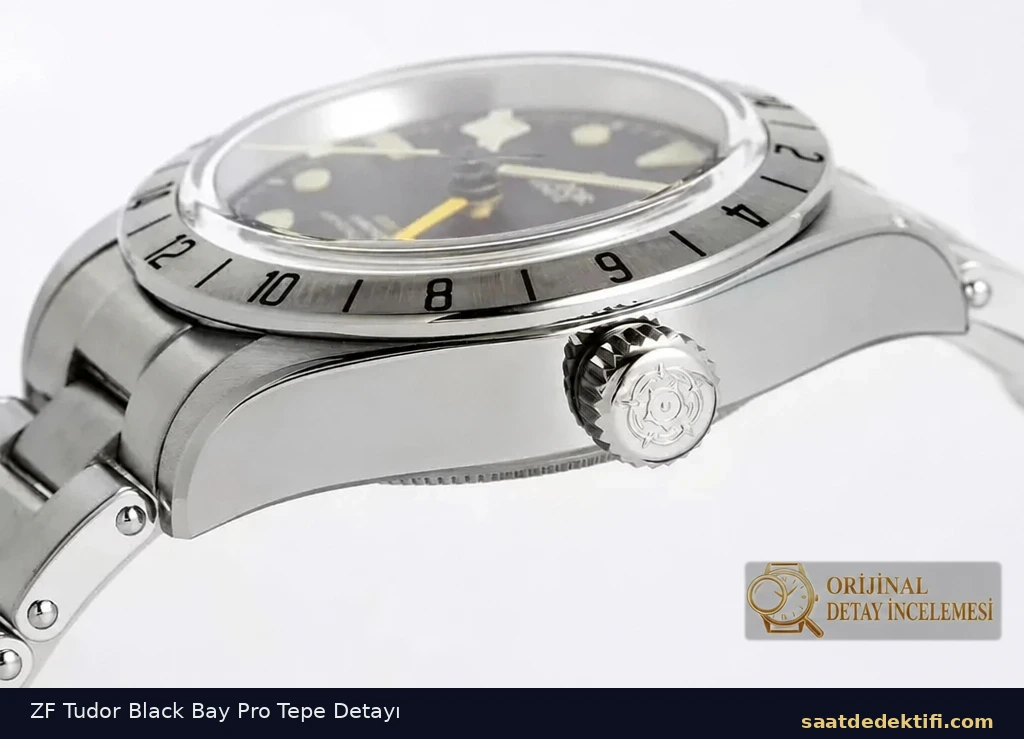

Tudor has redesigned the winding crown in this model; By hiding the top tube inside the body, he pulled the arm flush with the middle of the case. As the grip surface becomes larger, watch setting and winding becomes easier. It is an expensive area to replicate because the seal seat also needs to be repositioned when the tube is hidden. In the ZF version, the crown sits without a gap, and the classic Tudor rose relief on its surface emerges with a three-dimensional, sharp layer depth.

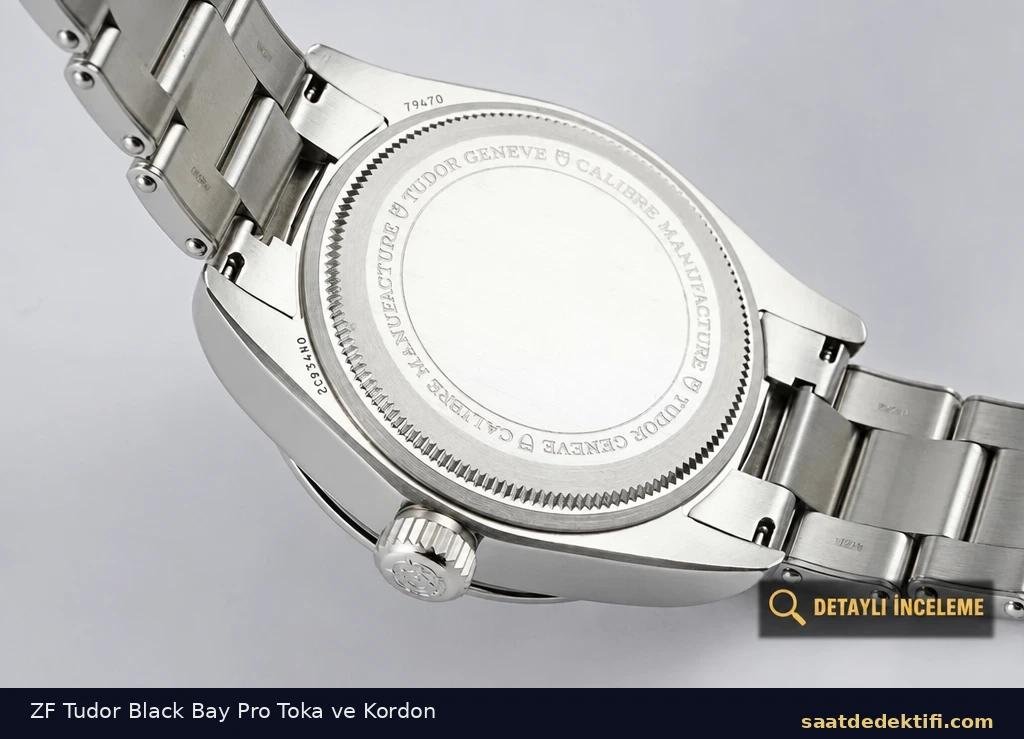

• Arka görünümde kapak dişlilerinin adımları ve conta oturma yüzeyi düzgün işlenmiş durumdadır. Toka ve kordon bütününe bakıldığında ise bilezik kalınlığının kasa yüksekliğiyle kurduğu oran öne çıkıyor: kaplumbağa kabuğu toka bileğe yayılırken kasanın 14.6 mm'lik gövdesini dengeler ve saatin ağırlık merkezini bilek üstünde tutar. Piyasa işi sürümlerde ince bilezik kalın kasayla yarışır ve saat yalpalar; ZF Factory sürümünde böyle bir ağırlık kaçağı gözlenmemiştir.

---

General Evaluation

Saat Dedektifi Laboratory Score: 9.7 / 10. The criterion of success in Black Bay Pro is not the perfection of a single piece, but the balance of 39 mm diameter and 14.6 mm thickness on the wrist. ZF Factory has achieved this balance by bringing the case curvature, chamfering width, hidden tube crown and deep engravings on the hardened steel to the original standard; It has reproduced items that most manufacturers replace with stock parts, such as the date wheel and T-fit buckle.
